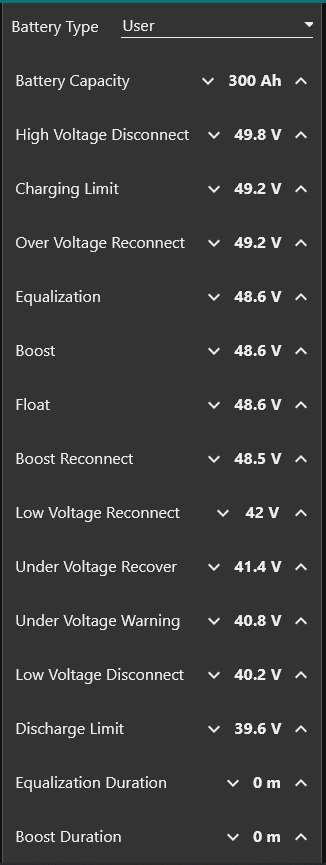

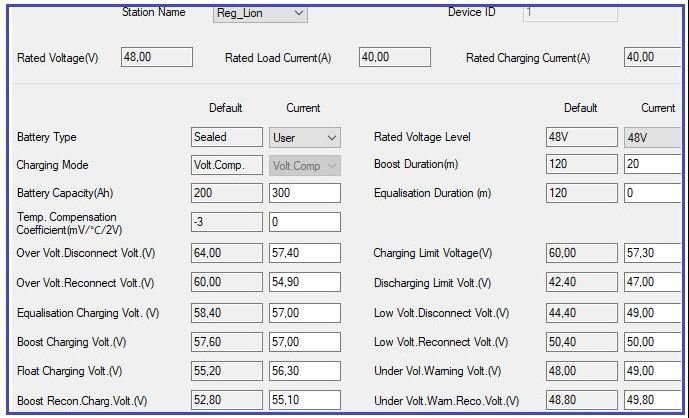

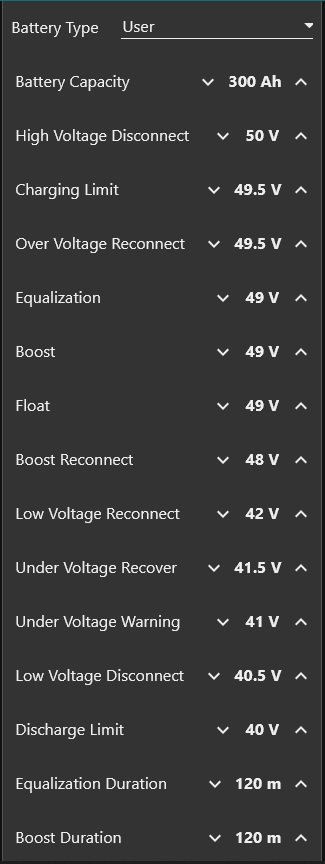

Epever XTRA4415n

[skybor]

Tak se mi po delším hledání podařilo něco najít a doupravit a vypadá to slibně.

Takže, kdyby náhodou někdo taky hledal, tak přikládám yaml soubor pro připojení 4x XTRA4415 přes převodník NET/RS485 (modbus) do HA:

epever_modbus.yaml

(25.13 KiB) Staženo 1 x

Kód: Vybrat vše

#EPEVER
  - name: Epever
    type: tcp
    host: 10.0.0.90
    port: 502
    binary_sensors:
      - name: PV1 Day/Night
        address: 8204
        input_type: discrete_input
        slave: 6
      - name: PV1 Over Temp
        address: 8192
        input_type: discrete_input
        slave: 6
      - name: PV2 Day/Night
        address: 8204
        input_type: discrete_input
        slave: 7
      - name: PV2 Over Temp
        address: 8192
        input_type: discrete_input
        slave: 7
      - name: PV3 Day/Night
        address: 8204
        input_type: discrete_input
        slave: 8
      - name: PV3 Over Temp
        address: 8192
        input_type: discrete_input
        slave: 8
      - name: PV4 Day/Night
        address: 8204
        input_type: discrete_input
        slave: 9
      - name: PV4 Over Temp
        address: 8192
        input_type: discrete_input
        slave: 9

    sensors:
#EPEVER Controller 1
#Rated Data
      - name: PV1 Charging Equipment Rated Input Voltage #0x003000
        unit_of_measurement: V
        slave: 6
        address: 12288
        input_type: input
        scale: 0.01
        precision: 1
        data_type: uint16
      - name: PV1 Array Input Voltage #0x003100
        unit_of_measurement: V
        slave: 6
        address: 12544
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV1 Array Input Current # 0x003101
        unit_of_measurement: A
        slave: 6
        address: 12545
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16

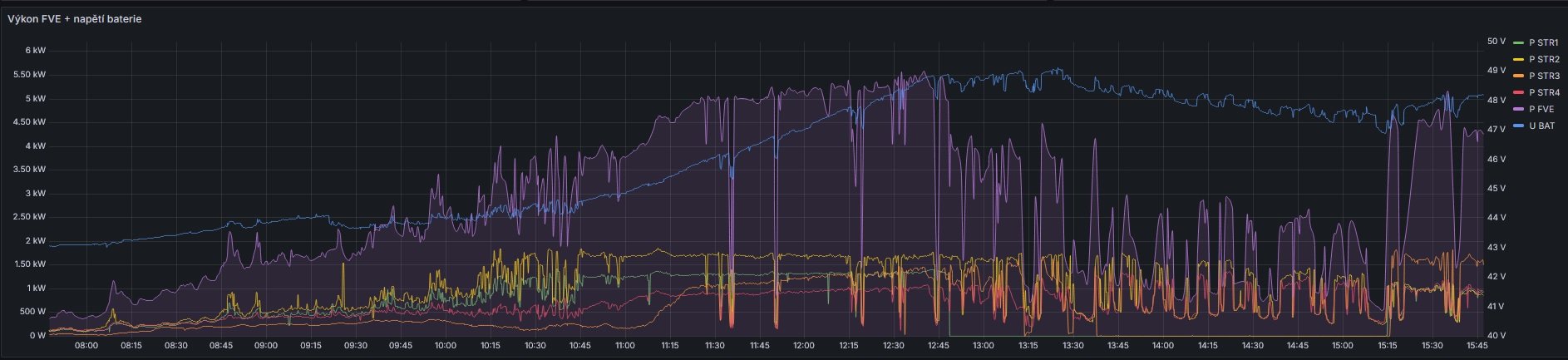

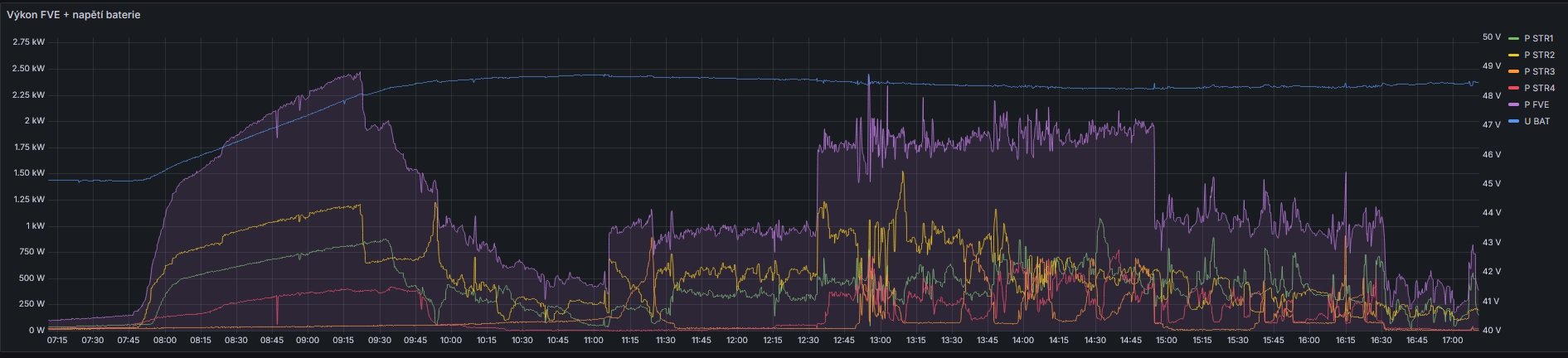

      - name: PV1 Array Power # 3102 and 3103
        unit_of_measurement: W
        slave: 6
        address: 12546
        input_type: input
        scale: .01
        #count: 2
        precision: 2
        swap: word
        data_type: uint32
      - name: PV1 Battery Temperature #0x003110
        unit_of_measurement: °C
        slave: 6
        address: 12560
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV1 Device Temperature #0x003111
        unit_of_measurement: °C
        slave: 6
        address: 12561
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV1 Battery State of Charge #0x00311A
        unit_of_measurement: "%"
        slave: 6
        address: 12570
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
      - name: PV1 Battery Status #0x003200
        slave: 6
        address: 12800
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15: 1-Wrong identification for rated voltage
        #D8: Battery inner resistance, abnormal 1, normal 0
        #D7-D4: 00H Normal, 01H Over, Temp.(Higher than the warning settings) 02H Low Temp.(Lower than the warning settings),
        #D3-D0: 00H Normal ,01H Over Voltage. , 02H Under Voltage, 03H Over discharge, 04H Fault
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV1 Charging Equipment Status #0x003201
        slave: 6
        address: 12801
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15-D14: Input voltage status. 00H normal, 01H No input power connected, 02H Higher input voltage , 03H Input voltage error.
        #D13: Charging MOSFET is short circuit.
        #D12: Charging or Anti-reverse MOSFET is open circuit.
        #D11: Anti-reverse MOSFET is short circuit.
        #D10: Input is over current.
        #D9: The load is over current.
        #D8: The load is short circuit.
        #D7: Load MOSFET is short circuit.
        #D6:Disequilibrium in three circuits.A17
        #D4: PV input is short circuit.
        #D3-D2: Charging status. 00H No charging,01H Float,02H Boost, 03H Equalization.
        #D1: 0 Normal, 1 Fault.
        #D0: 1 Running, 0 Standby.
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV1 Maximum Battery Voltage Today #0x003302
        unit_of_measurement: V
        slave: 6
        address: 13058
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV1 Minimum Battery Voltage Today #0x003303
        unit_of_measurement: V
        slave: 6
        address: 13059
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV1 Generated Energy Today #0x00330C & 0D
        unit_of_measurement: kWh
        slave: 6
        address: 13068
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV1 Generated Energy This Month #0x00330E & 0F
        unit_of_measurement: kWh
        slave: 6
        address: 13070
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV1 Generated Energy This Year #0x003310 & 11
        unit_of_measurement: kWh
        slave: 6
        address: 13072
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV1 Total Generated Energy #0x003312 & 13
        unit_of_measurement: kWh
        slave: 6
        address: 13074
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32

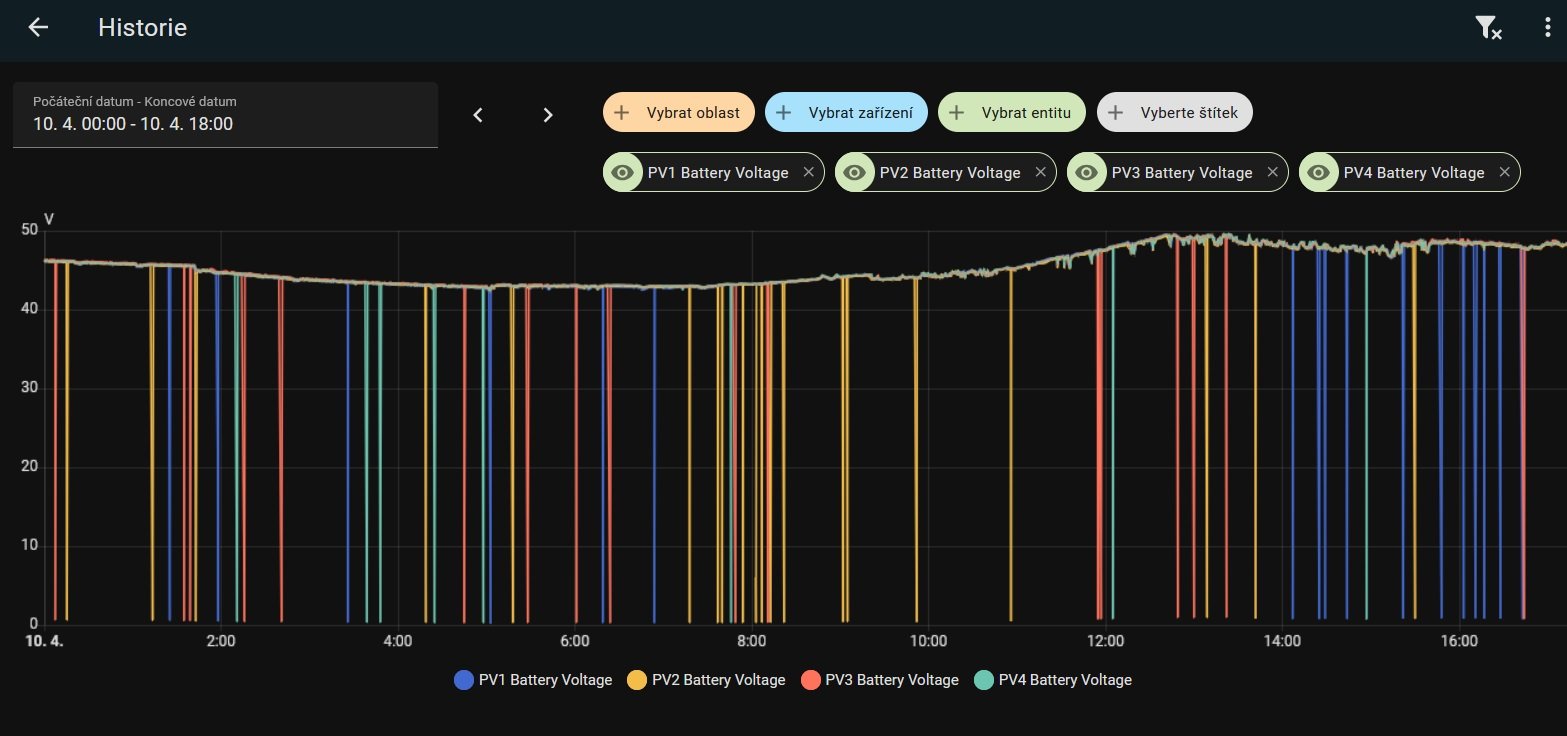

      - name: PV1 Battery Voltage #0x00331A
        unit_of_measurement: V
        slave: 6
        address: 13082
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV1 Battery Current #0x00331B & 1C
        unit_of_measurement: A
        slave: 6
        address: 13083
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
###############################################################################

#EPEVER Controller 2
#Rated Data
      - name: PV2 Charging Equipment Rated Input Voltage #0x003000
        unit_of_measurement: V
        slave: 7
        address: 12288
        input_type: input
        scale: 0.01
        precision: 1
        data_type: uint16
      - name: PV2 Array Input Voltage #0x003100
        unit_of_measurement: V
        slave: 7
        address: 12544
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV2 Array Input Current # 0x003101
        unit_of_measurement: A
        slave: 7
        address: 12545
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV2 Array Power # 3102 and 3103
        unit_of_measurement: W
        slave: 7
        address: 12546
        input_type: input
        scale: .01
        #count: 2
        precision: 2
        swap: word
        data_type: uint32
      - name: PV2 Battery Temperature #0x003110
        unit_of_measurement: °C
        slave: 7
        address: 12560
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV2 Device Temperature #0x003111
        unit_of_measurement: °C
        slave: 7
        address: 12561
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV2 Battery State of Charge #0x00311A
        unit_of_measurement: "%"
        slave: 7
        address: 12570
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
      - name: PV2 Battery Status #0x003200
        slave: 7
        address: 12800
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15: 1-Wrong identification for rated voltage
        #D8: Battery inner resistance, abnormal 1, normal 0
        #D7-D4: 00H Normal, 01H Over, Temp.(Higher than the warning settings) 02H Low Temp.(Lower than the warning settings),
        #D3-D0: 00H Normal ,01H Over Voltage. , 02H Under Voltage, 03H Over discharge, 04H Fault
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV2 Charging Equipment Status #0x003201
        slave: 7
        address: 12801
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15-D14: Input voltage status. 00H normal, 01H No input power connected, 02H Higher input voltage , 03H Input voltage error.
        #D13: Charging MOSFET is short circuit.
        #D12: Charging or Anti-reverse MOSFET is open circuit.
        #D11: Anti-reverse MOSFET is short circuit.
        #D10: Input is over current.
        #D9: The load is over current.
        #D8: The load is short circuit.
        #D7: Load MOSFET is short circuit.
        #D6:Disequilibrium in three circuits.A17
        #D4: PV input is short circuit.
        #D3-D2: Charging status. 00H No charging,01H Float,02H Boost, 03H Equalization.
        #D1: 0 Normal, 1 Fault.
        #D0: 1 Running, 0 Standby.
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV2 Maximum Battery Voltage Today #0x003302
        unit_of_measurement: V
        slave: 7
        address: 13058
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV2 Minimum Battery Voltage Today #0x003303
        unit_of_measurement: V
        slave: 7
        address: 13059
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV2 Generated Energy Today #0x00330C & 0D
        unit_of_measurement: kWh
        slave: 7
        address: 13068
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV2 Generated Energy This Month #0x00330E & 0F
        unit_of_measurement: kWh
        slave: 7
        address: 13070
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV2 Generated Energy This Year #0x003310 & 11
        unit_of_measurement: kWh
        slave: 7
        address: 13072
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV2 Total Generated Energy #0x003312 & 13
        unit_of_measurement: kWh
        slave: 7
        address: 13074
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV2 Battery Voltage #0x00331A
        unit_of_measurement: V
        slave: 7
        address: 13082
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV2 Battery Current #0x00331B & 1C
        unit_of_measurement: A
        slave: 7
        address: 13083
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
###############################################################################

#EPEVER Controller 2
#Rated Data
      - name: PV3 Charging Equipment Rated Input Voltage #0x003000
        unit_of_measurement: V
        slave: 8
        address: 12288
        input_type: input
        scale: 0.01
        precision: 1
        data_type: uint16
      - name: PV3 Array Input Voltage #0x003100
        unit_of_measurement: V
        slave: 8
        address: 12544
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV3 Array Input Current # 0x003101
        unit_of_measurement: A
        slave: 8
        address: 12545
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV3 Array Power # 3102 and 3103
        unit_of_measurement: W
        slave: 8
        address: 12546
        input_type: input
        scale: .01
        #count: 2
        precision: 2
        swap: word
        data_type: uint32
      - name: PV3 Battery Temperature #0x003110
        unit_of_measurement: °C
        slave: 8
        address: 12560
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV3 Device Temperature #0x003111
        unit_of_measurement: °C
        slave: 8
        address: 12561
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV3 Battery State of Charge #0x00311A
        unit_of_measurement: "%"
        slave: 8
        address: 12570
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
      - name: PV3 Battery Status #0x003200
        slave: 8
        address: 12800
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15: 1-Wrong identification for rated voltage
        #D8: Battery inner resistance, abnormal 1, normal 0
        #D7-D4: 00H Normal, 01H Over, Temp.(Higher than the warning settings) 02H Low Temp.(Lower than the warning settings),
        #D3-D0: 00H Normal ,01H Over Voltage. , 02H Under Voltage, 03H Over discharge, 04H Fault
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV3 Charging Equipment Status #0x003201
        slave: 8
        address: 12801
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15-D14: Input voltage status. 00H normal, 01H No input power connected, 02H Higher input voltage , 03H Input voltage error.
        #D13: Charging MOSFET is short circuit.
        #D12: Charging or Anti-reverse MOSFET is open circuit.
        #D11: Anti-reverse MOSFET is short circuit.
        #D10: Input is over current.
        #D9: The load is over current.
        #D8: The load is short circuit.
        #D7: Load MOSFET is short circuit.
        #D6:Disequilibrium in three circuits.A17
        #D4: PV input is short circuit.
        #D3-D2: Charging status. 00H No charging,01H Float,02H Boost, 03H Equalization.
        #D1: 0 Normal, 1 Fault.
        #D0: 1 Running, 0 Standby.
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV3 Maximum Battery Voltage Today #0x003302
        unit_of_measurement: V
        slave: 8
        address: 13058
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV3 Minimum Battery Voltage Today #0x003303
        unit_of_measurement: V
        slave: 8
        address: 13059
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV3 Generated Energy Today #0x00330C & 0D
        unit_of_measurement: kWh
        slave: 8
        address: 13068
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV3 Generated Energy This Month #0x00330E & 0F
        unit_of_measurement: kWh
        slave: 8
        address: 13070
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV3 Generated Energy This Year #0x003310 & 11
        unit_of_measurement: kWh
        slave: 8
        address: 13072
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV3 Total Generated Energy #0x003312 & 13
        unit_of_measurement: kWh
        slave: 8
        address: 13074
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV3 Battery Voltage #0x00331A
        unit_of_measurement: V
        slave: 8
        address: 13082
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV3 Battery Current #0x00331B & 1C
        unit_of_measurement: A
        slave: 8
        address: 13083
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
###############################################################################

#EPEVER Controller 2
#Rated Data
      - name: PV4 Charging Equipment Rated Input Voltage #0x003000
        unit_of_measurement: V
        slave: 9
        address: 12288
        input_type: input
        scale: 0.01
        precision: 1
        data_type: uint16
      - name: PV4 Array Input Voltage #0x003100
        unit_of_measurement: V
        slave: 9
        address: 12544
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV4 Array Input Current # 0x003101
        unit_of_measurement: A
        slave: 9
        address: 12545
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV4 Array Power # 3102 and 3103
        unit_of_measurement: W
        slave: 9
        address: 12546
        input_type: input
        scale: .01
        #count: 2
        precision: 2
        swap: word
        data_type: uint32
      - name: PV4 Battery Temperature #0x003110
        unit_of_measurement: °C
        slave: 9
        address: 12560
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV4 Device Temperature #0x003111
        unit_of_measurement: °C
        slave: 9
        address: 12561
        input_type: input
        scale: 0.01
        precision: 2
        data_type: int16
      - name: PV4 Battery State of Charge #0x00311A
        unit_of_measurement: "%"
        slave: 9
        address: 12570
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
      - name: PV4 Battery Status #0x003200
        slave: 9
        address: 12800
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15: 1-Wrong identification for rated voltage
        #D8: Battery inner resistance, abnormal 1, normal 0
        #D7-D4: 00H Normal, 01H Over, Temp.(Higher than the warning settings) 02H Low Temp.(Lower than the warning settings),
        #D3-D0: 00H Normal ,01H Over Voltage. , 02H Under Voltage, 03H Over discharge, 04H Fault
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV4 Charging Equipment Status #0x003201
        slave: 9
        address: 12801
        input_type: input
        scale: 1
        precision: 0
        data_type: uint16
        #######################################################################
        #D15-D14: Input voltage status. 00H normal, 01H No input power connected, 02H Higher input voltage , 03H Input voltage error.
        #D13: Charging MOSFET is short circuit.
        #D12: Charging or Anti-reverse MOSFET is open circuit.
        #D11: Anti-reverse MOSFET is short circuit.
        #D10: Input is over current.
        #D9: The load is over current.
        #D8: The load is short circuit.
        #D7: Load MOSFET is short circuit.
        #D6:Disequilibrium in three circuits.A17
        #D4: PV input is short circuit.
        #D3-D2: Charging status. 00H No charging,01H Float,02H Boost, 03H Equalization.
        #D1: 0 Normal, 1 Fault.
        #D0: 1 Running, 0 Standby.
        #Status analysis
        #Array status:address 3201 bits D15-D10
        #Charging status:address 3201 bits D3-D2
        #Battery status: address 3200 bits D7-D0
        #Load status: address 3201 bits D9-D7,
        #Device status: address 3200 bit D15 address 3202 bits D13-D8,D6-D4 address 3201 bits D6 address 2000
        ############################################################################################
      - name: PV4 Maximum Battery Voltage Today #0x003302
        unit_of_measurement: V
        slave: 9
        address: 13058
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV4 Minimum Battery Voltage Today #0x003303
        unit_of_measurement: V
        slave: 9
        address: 13059
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV4 Generated Energy Today #0x00330C & 0D
        unit_of_measurement: kWh
        slave: 9
        address: 13068
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV4 Generated Energy This Month #0x00330E & 0F
        unit_of_measurement: kWh
        slave: 9
        address: 13070
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV4 Generated Energy This Year #0x003310 & 11
        unit_of_measurement: kWh
        slave: 9
        address: 13072
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV4 Total Generated Energy #0x003312 & 13
        unit_of_measurement: kWh
        slave: 9
        address: 13074
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
      - name: PV4 Battery Voltage #0x00331A
        unit_of_measurement: V
        slave: 9
        address: 13082
        input_type: input
        scale: 0.01
        precision: 2
        data_type: uint16
      - name: PV4 Battery Current #0x00331B & 1C
        unit_of_measurement: A
        slave: 9
        address: 13083
        input_type: input
        scale: 0.01
        precision: 2
        #count: 2
        swap: word
        data_type: int32
###############################################################################
