Jak nepostavit FVE (Zlaté Hory)

[Soban]

Tak další upgrade elektrárny......

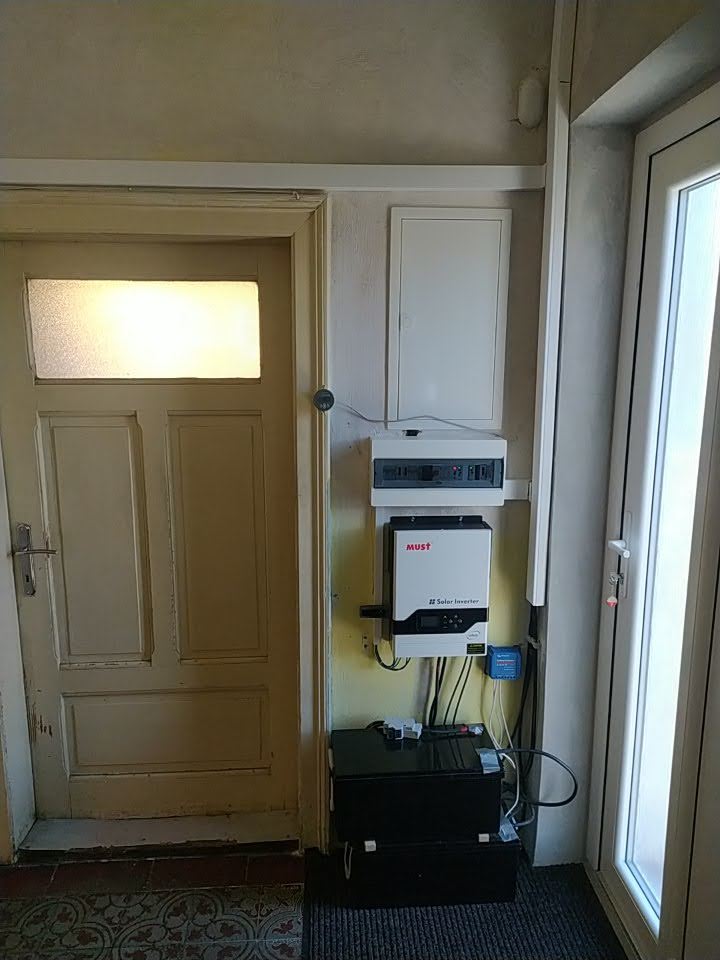

Byl zprovozněn ten starý měnič REVO který bude používán jak svítí tak bude napájet bojler a zásuvky v koupelně a ven na zahradu.

V zimě bude vypnut a okruhy přepnuty na DS.

Tak vše je zapojeno, dnes kompletní provoz z DS elektrárna vyrobila pouze 1kWh a ta šla do prázdné baterky.

Tak jsem si s tím taky hrál, a zjišťoval kolik proudu berou ty vypnuté měniče.

Takže když je vše vypnuté a odpojené AC IN tak spotřeba je obou 130mA. (Měřeno BMV712 zkontrolováno i normálním měřákem.)

Jinak:

Zapnuté AC IN + zapnutý měnič a vypnutý jistič AC OUT čili nulová spotřeba:

MUST s vypnutým šetřením proudu - 1.35A
MUST s zapnutým šetřením proudu - 0.80A až 0.89A prostě to skáče ta poslední číslice a šipka na LCD do zátěže bliká prostě jednou je a jednou je jenom čára.

REVO nemá žádný šetřící režim, takže při vypnutém jističi AC OUT spotřeba 1.03A .

[bokser01]

Dobrá volba teď budeš zase o něco svobodnější Pojede bojler a k němu třeba pračka. Mám taky doma v podstatě 2f rozvod z měničů. Jak jsi řešil AC IN? To musím ještě dořešit... vede mi tam 2,5mm2 pro oba měniče zatím jistěných 16A jističem. Plánuju tam asi dotáhnout další fázi z DS a každý měnič mít na svojí fázi přívodu.

[Soban]

Tak já AC IN mám na jedné fázi s 25A jističem, elektroměr a do obou měničů 4mm2 drátem.

Což je 25*230=5750W což by mě mělo bez problémů v bypassu stačit.

Z toho mustu mám elektroměr a taky 25A jistič aby to přetížení zvládl a za tím přepínač FVE - DS a už další rozvody taky 4mm2 drátem.

Z toho REVA mám zase elektroměr a jistič 13A drát 2.5mm2 a jenom na ruční přepínač FVE - DS a chráničojistič a šup s tím do koupelny, tam je podružný rozvaděč, s proudovým relé co odpíná bojler při zátěži ze zásuvek a soumrakový spínač který odpíná bojler navečer aby nežral baterku. Zde se nepočítá s přetížením proto tenčí drát a jenom 13A jistič.
Je to tak proto že do koupelny vede pouze jeden kabel 2.5mm2 - prostě se s bojlerem nepočítalo, byl tam plynový ohřívač.

[Soban]

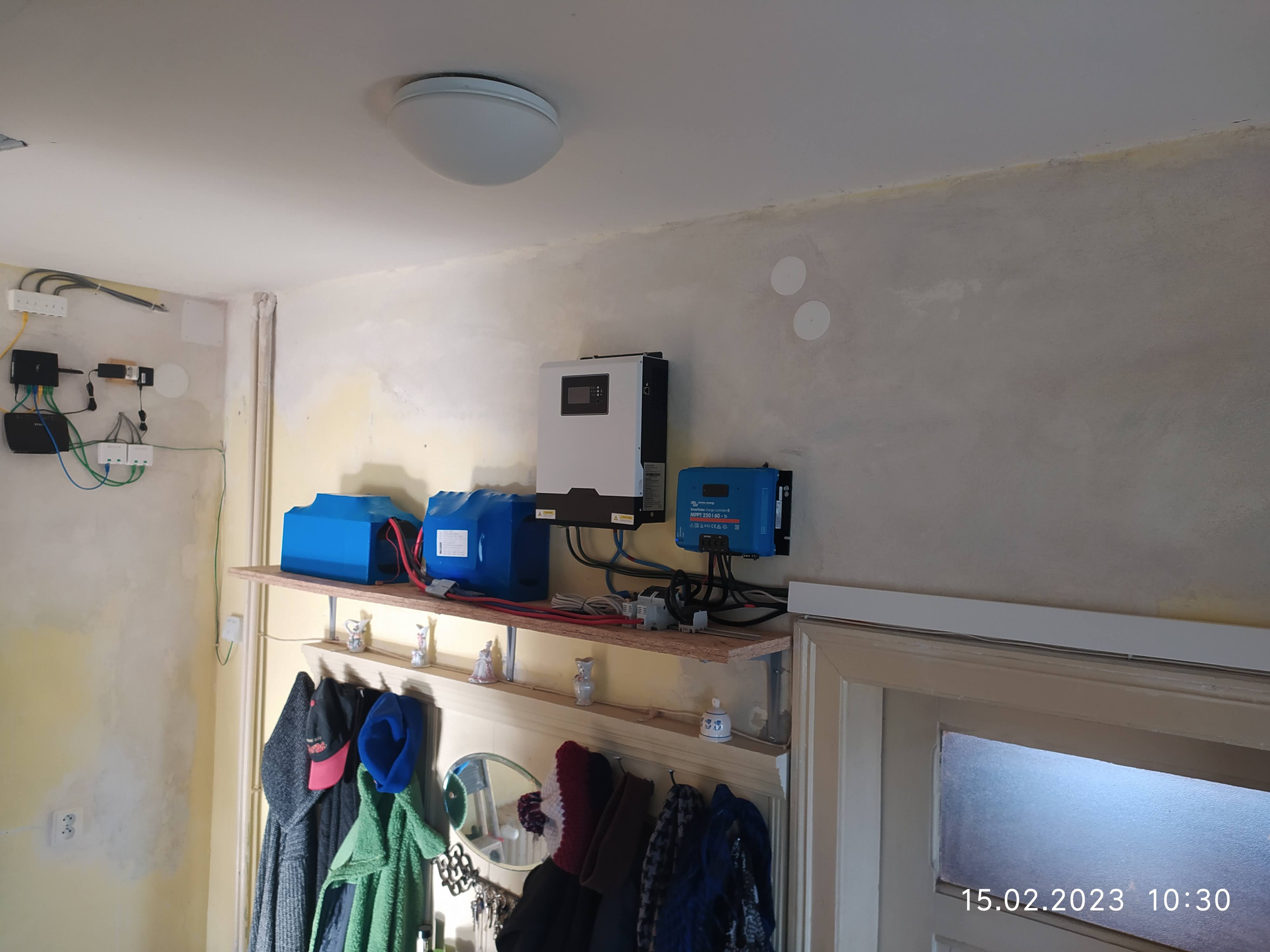

Další kabely byly dány do lišt ať to trochu lépe vypadá.....

must

A druhý měnič - REVO

REVO

[cipis]

Kdy zrenovuješ dveře a obložky?

[Soban]

Až naprší a uschne

Vchodové dveře a střecha je spravená okna taky, elektrika částečně (ve dvou pokojích a komoře zůstal ještě hliník) vědět že budu dělat FVE tak bych dal největší rozvaděč a natáhl další kabely do koupelny pro bojlery...

Teď to chce zateplit, vykopat plynové topení a udělat nové, ale na co? Peletky a zdraží peletky a zlevní plyn jak to udělám, elektriku - to zase FVE nedá v zimě kdy to je třeba........

[TomHC]

Kdy zrenovuješ dveře a obložky?

Načo, to je teraz moderné

[glottis]

Dobrý termín je taky "až bude fve hotová"

[bokser01]

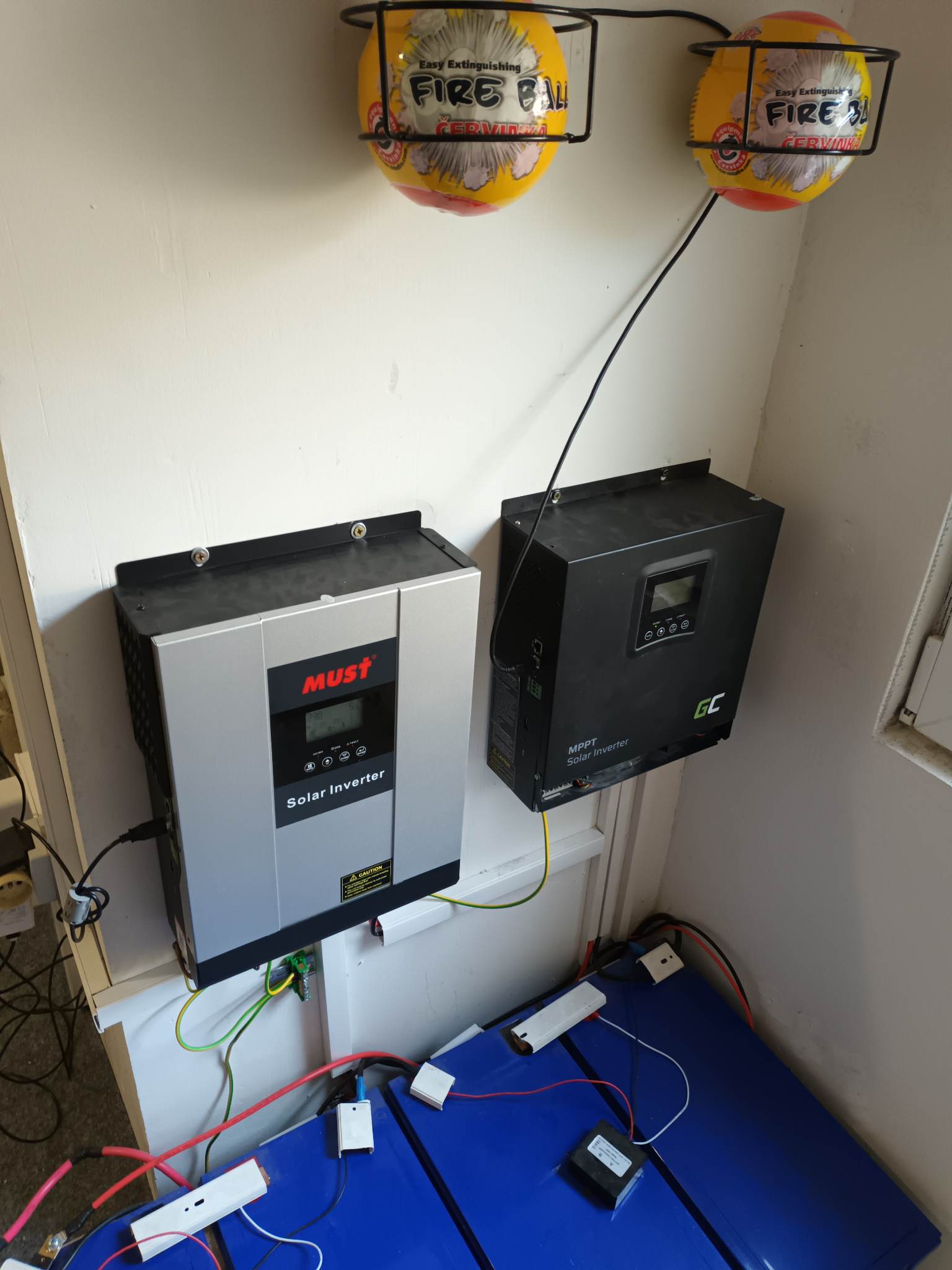

Docela mazec jak to Revo i Green cell jsou o dost menší než MUST. Asi tím vzniká odpověď která je v rozdílu kvality kde MUST je jednička oproti těm 2 jmenovaným.

Tady ještě když jsem měl Green cell a je pěkně vidět velikostní porovnání s MUST.

[Soban]

Tak MUST: Nová verze.....
(W*H*D)
272x355x100 mm

REVO: Je větší........
(W*H*D)
285x360x118 mm

Tak nevím podle mě v té velikosti není moc rozdíl......

[bokser01]

Aha, tak z toho co jsi postnul je revo opticky rozhodně menší

Green cell:

rozměry:
320.5x224x95.1mm

MUST:
272 × 355 × 100 mm

[Soban]

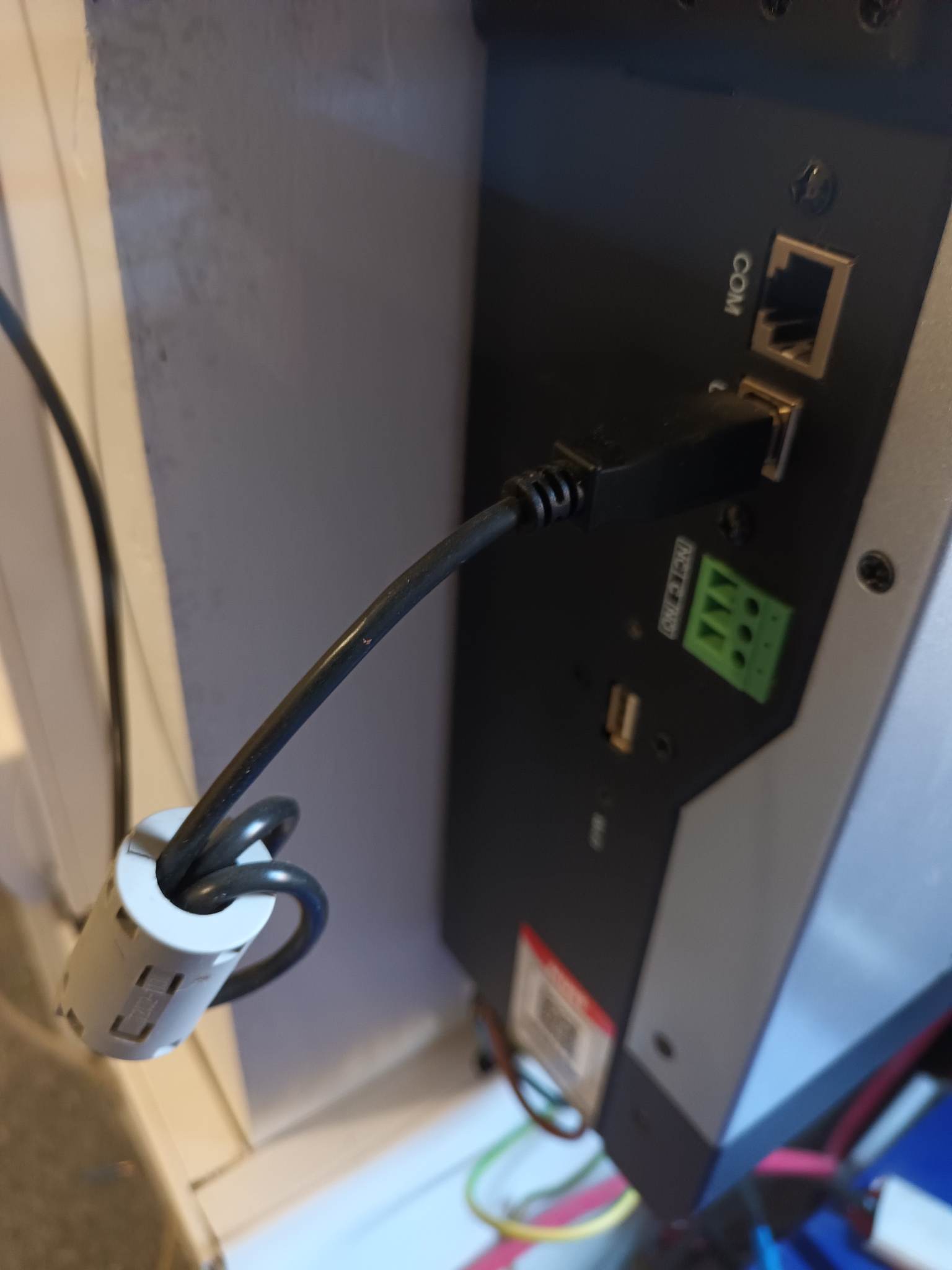

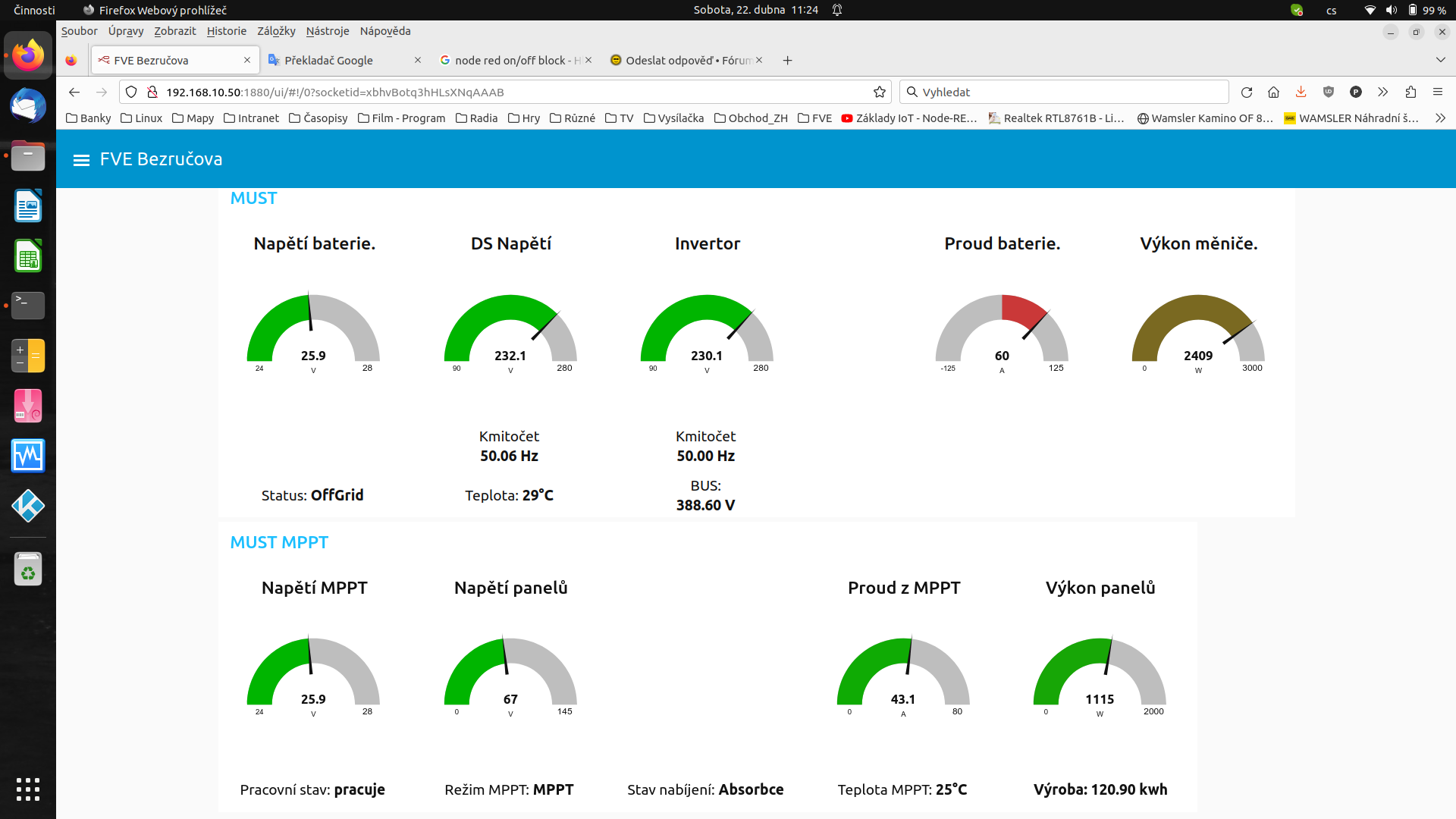

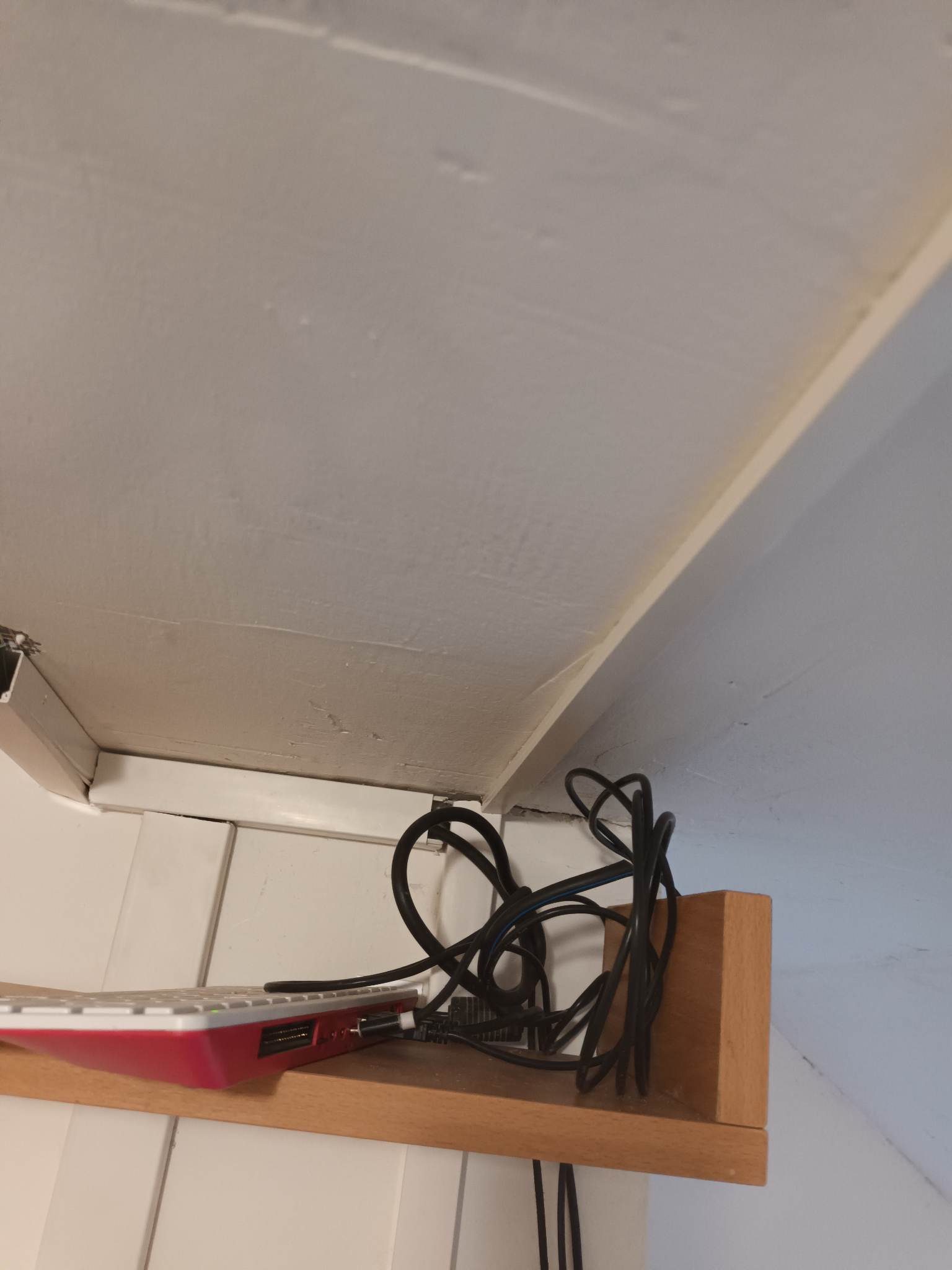

Tak jsem zprovoznil ovládání toho 24V mustu z Raspberry Pi 400 pomocí Node-RED.

must - ovládáí

Připojeno je to přes USB káblík, uvažuji k tomu připojit ještě revo a mppt od victronu.


Kdo má zájem kod zde:
