OnGrid menic Eaton 5kW

[vadopa]

Predám solárny menič pre FV panely. Výkon max 5000W s 3 MPPT Trackermi. (cena 495 Euro)
Je možné pripojiť 3 nezávislé sústavy panelov.

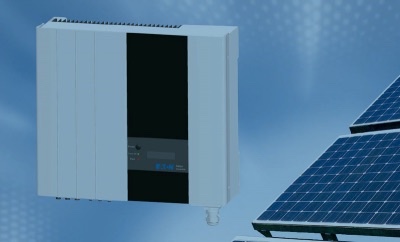

EATON ISG3O-4600
Output power: 4600 W
Max. output power: 5000 W
Operating voltage: 190-256 VAC
Operating frequency: 50 Hz
Current THD: < 3%
Power factor: < 1
Power connection: 1-phase
Max. efficiency: > 96%
Euro efficiency: > 94.5%
Stand-by power: 8 W
Overvoltage category: III
Degree of protection: IP65
Operating temperature: -20°C to +55°C
Humidity (non-condensing): 0-95%
Accustic noise level: < 35 dBA
Comm. interface: RS232 (RS485 optional)
Display: LCD / 2 lines, 32 characters

Max. DC power: 3800 W per tracker
Max. DC voltage: 750 VDC
MPP voltage range: 125-700 VDC
Nominal DC voltage: 600 VDC
Max. input current: 8.5 ADC per tracker
MPP Tracker: 3
W x H x D [mm] 442x532x134
Váha: 27 kg
